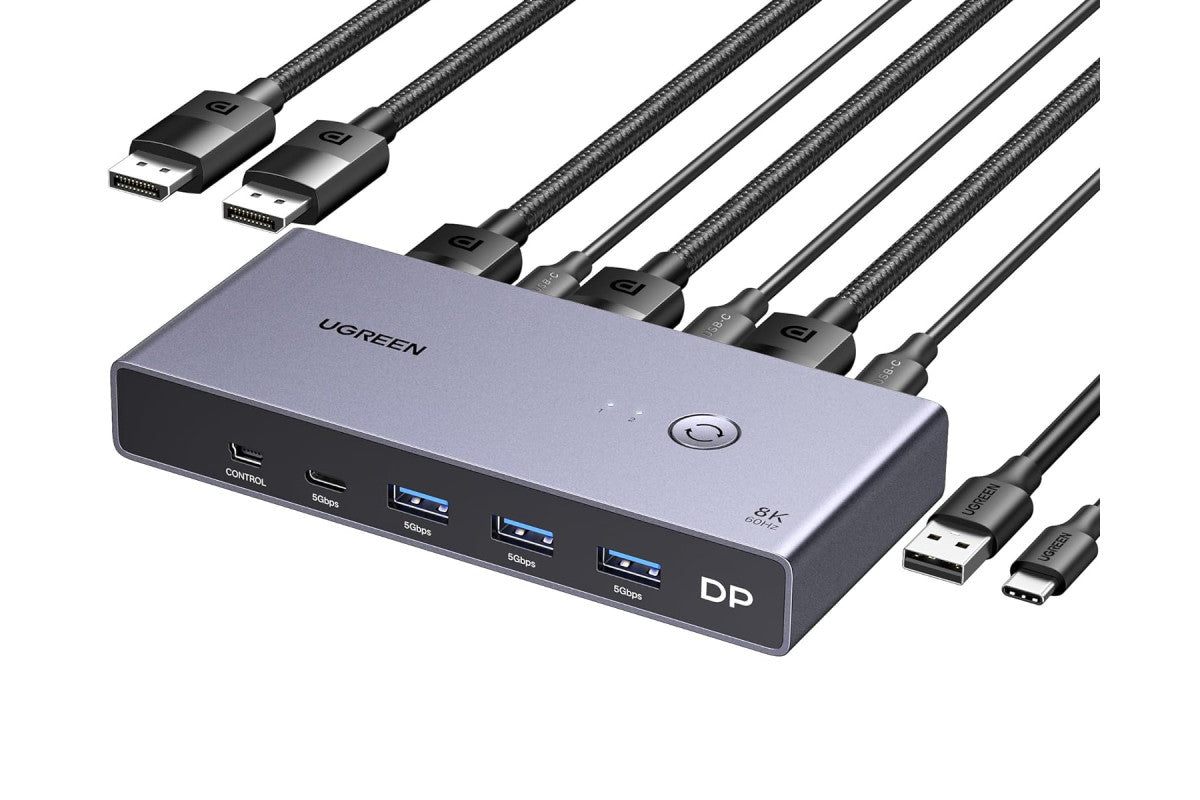

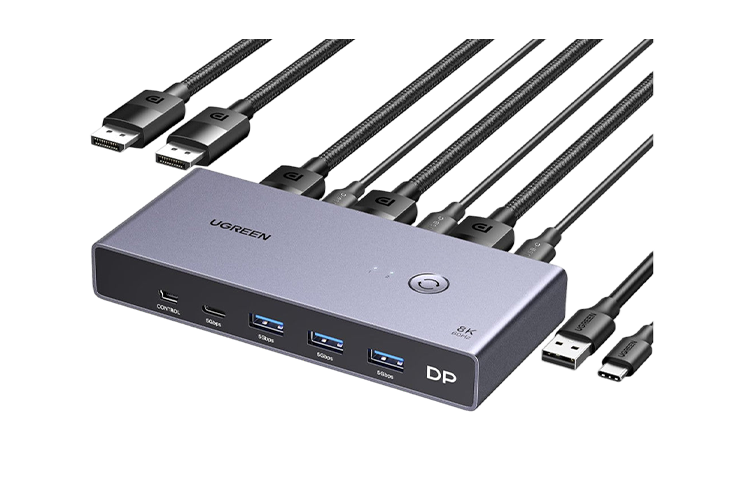

UGREEN DisplayPort KVM Switch 2 In 1 Out,UG-25962
- Product SKU: UG-25962

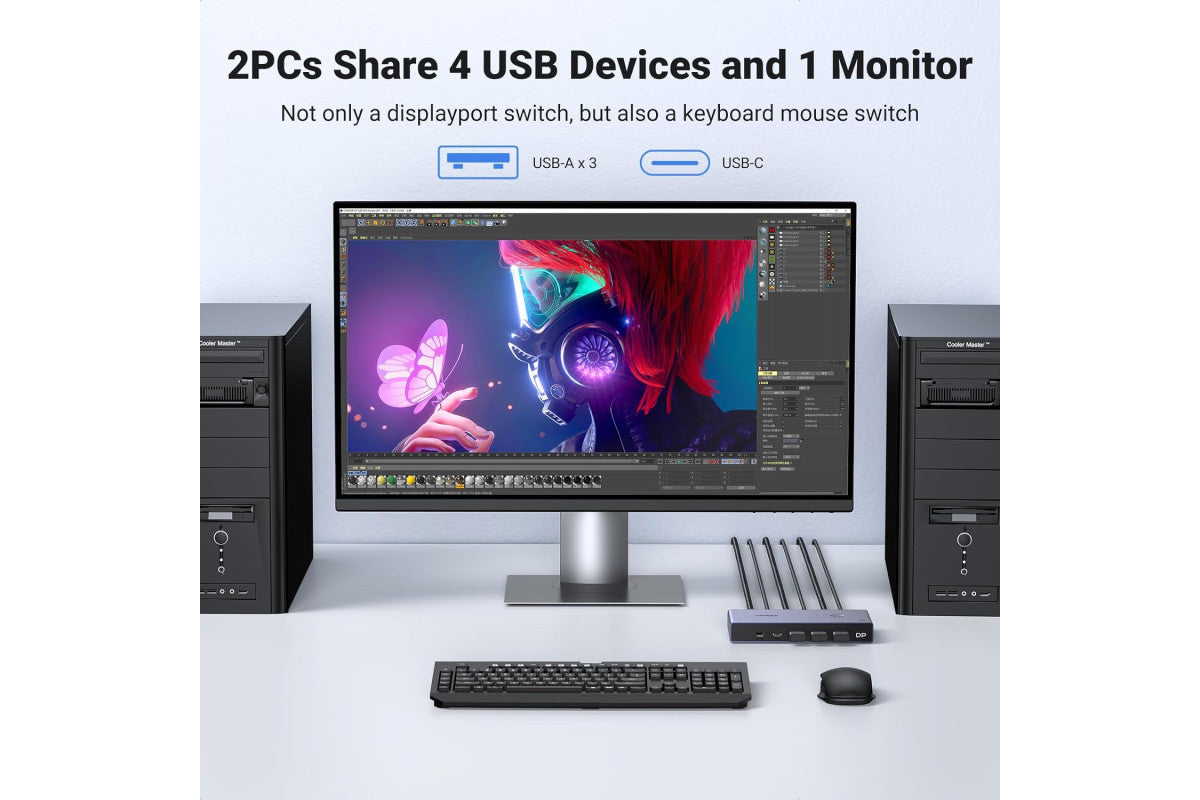

【Displayport KVM Switch 1 Monitor 2 Computers】
This DP KVM Switch allows 2 computers to share a monitor and 4 USB 3.0 devices such as keyboard, mouse, hard drives, flash drive and printer. It is not only a DisplayPort switch, but also a keyboard and mouse switch. You can easily switch between two computers, which not only keeps your workspace tidy, but also helps maximize productivity.
【UHD 8K Resolution @ 60Hz】
This 2-port DP 1.4 KVM switch supports resolutions up to 8K @ 60Hz and is backward compatible with 4k @ 240Hz, 4k @ 144Hz, 4k @ 120Hz, 4K @ 60Hz, 2560*1440 @ 240. Provides clear, high-quality images and lag-free transmission.

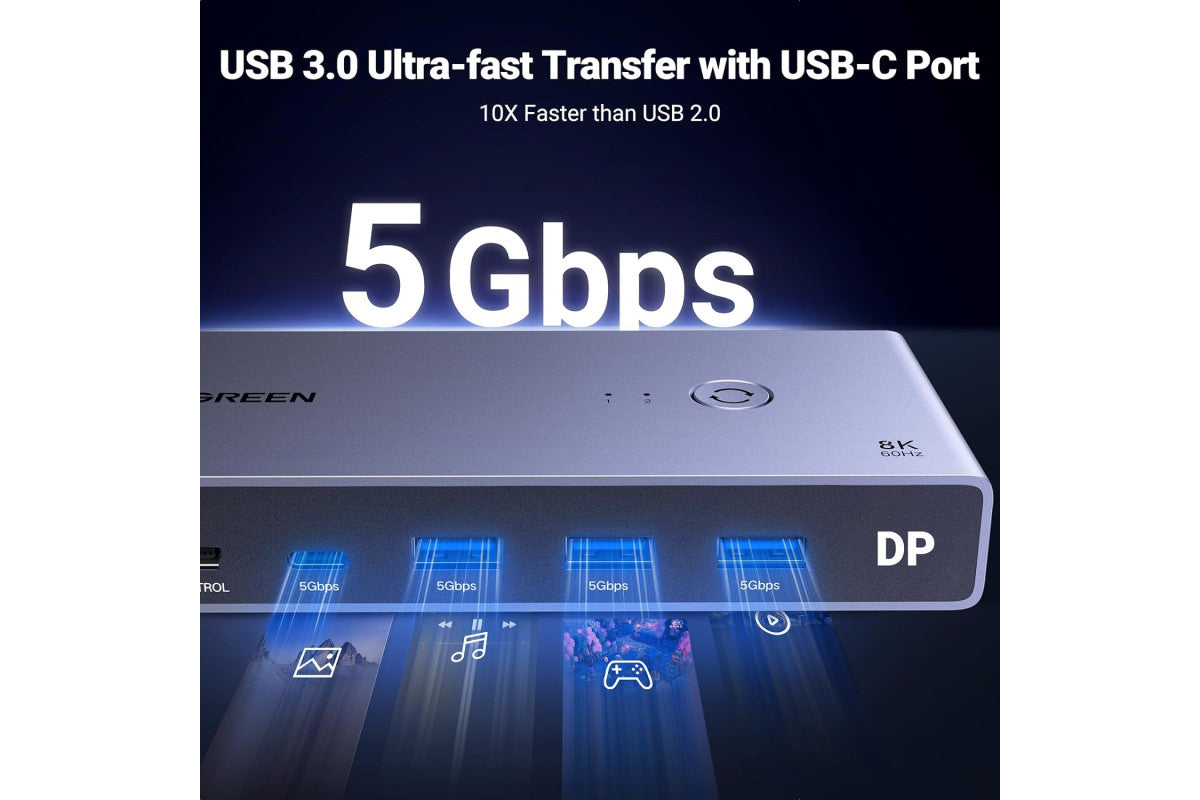

【Displayport KVM Switch with 4 USB 3.0 Ports】
This 8K DisplayPort KVM features 4 USB 3.0 ports (3 USB-A + 1 USB-C) for sharing USB storage devices, printers, mobile hard drives, flash drives and other USB 3.0 and USB 2.0 devices. The USB 3.0 ports provide data transfer speeds of up to 5Gbps, allowing you to transfer files and images faster, making your work and life easier and more convenient. [NOTE: When connecting high-power devices such as hard drives, please connect the charger and Type-C C cable to the power source.]

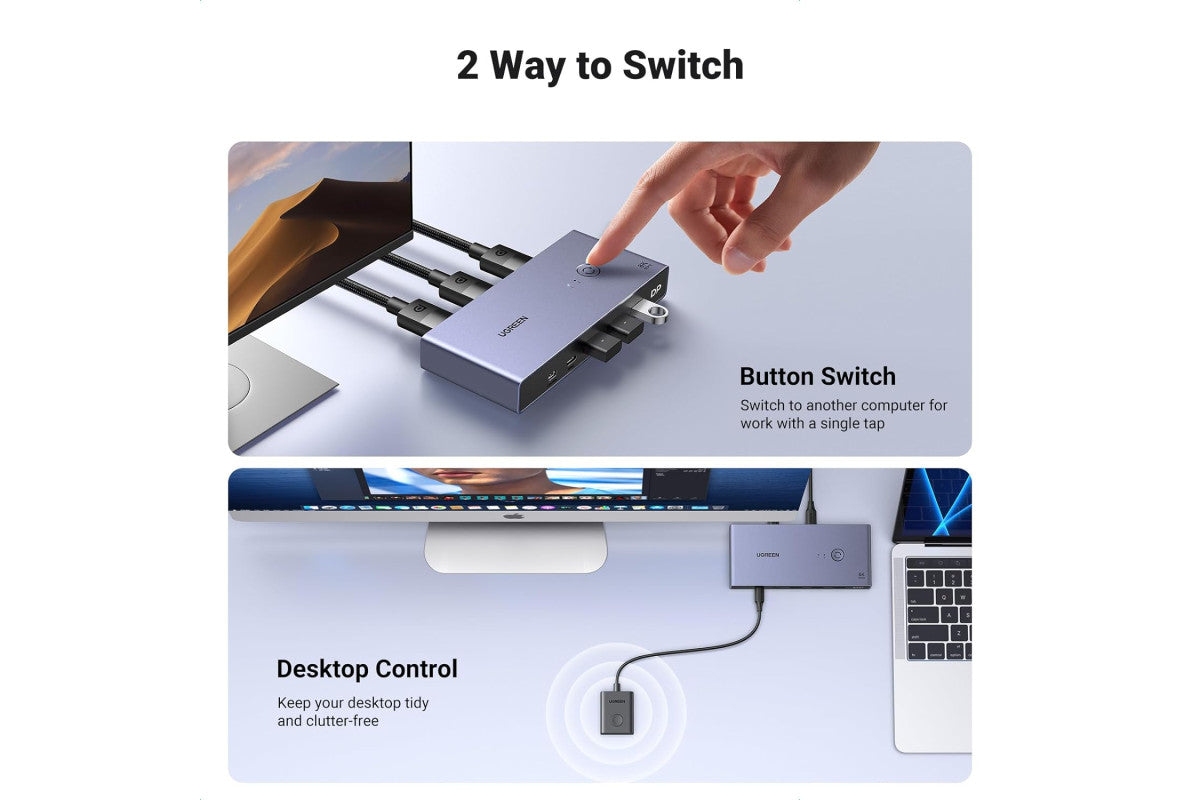

【Two Ways to Switch】
With the one-button switch or wired remote, you can switch between two computers freely, saving desk space and sharing the display, keyboard and mouse between 2 computers, improving productivity. If the DP switch is not placed on the desktop, the wired remote will be a good helper for quick switching. [NOTE: This KVM Displayport switch does not support keyboard hotkey switching].

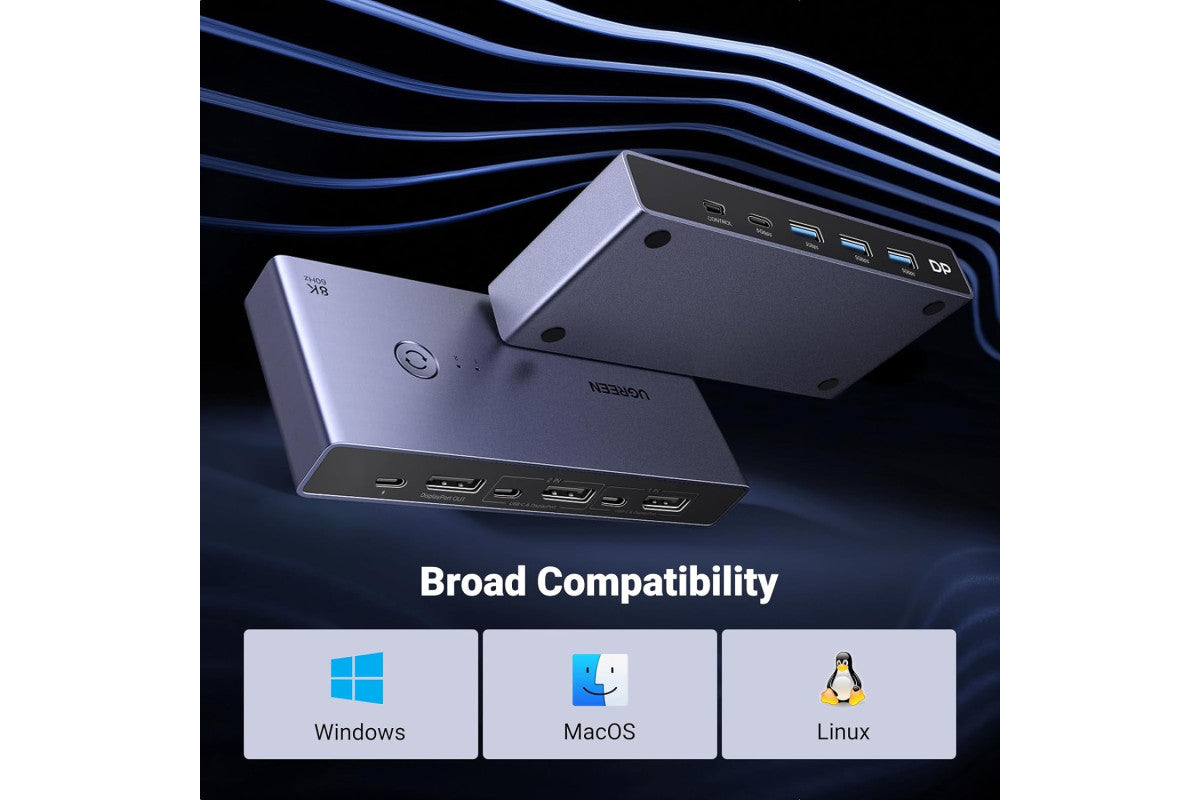

【Wide Compatibility】
This DisplayPort KVM Switch supports Windows 11/10/8.1/8/7, Mac OS and Linux (Ubuntu) operating systems. Just plug and play, no drivers required. It is widely used in enterprises, offices, multimedia teaching, conference rooms, game rooms, homes, etc.
【Notes】
1. Both USB A to C cables must be connected for power.
2. The USB-C power cable and power adapter are not included.
3. To avoid incompatibility, it is not recommended to use the KVM with a docking station.
Technical specifications:
• Manufacturer: UGREEN

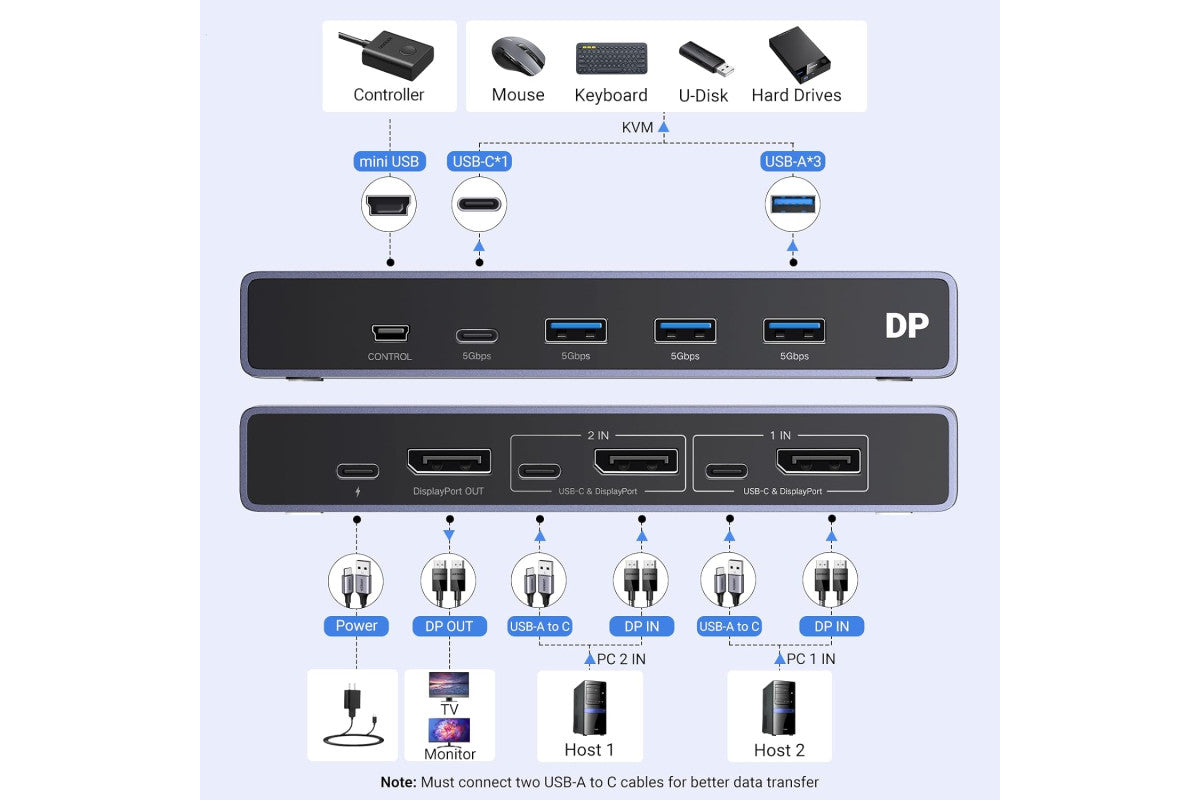

• Input: 2*DisplayPort, 1*USB-C, 1*Mini USB,
• Output: 1*DisplayPort, 3*USB-A, 1*USB-C,

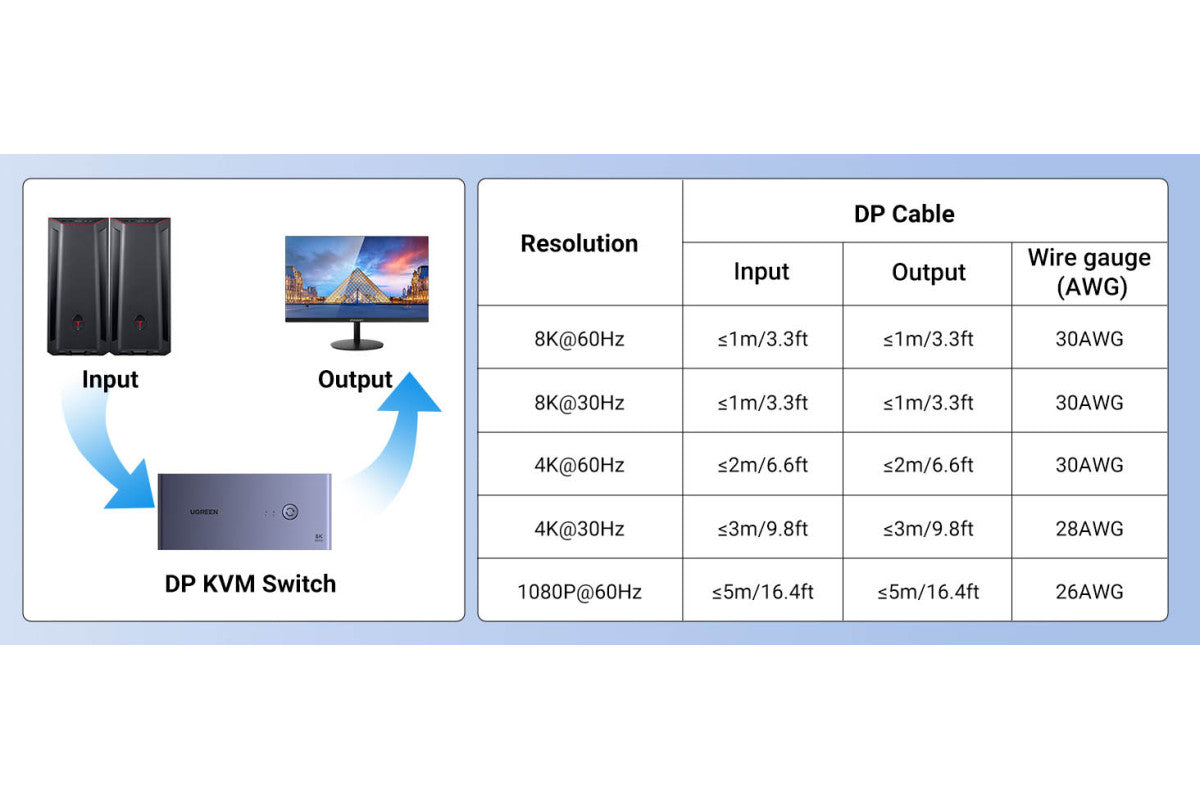

• Supported resolutions: 8k 60hz, 4k 240hz, 4k 144hz, 4k 120hz, 4k 60hz, 2k 240hz, 2k 165hz, 2k 144hz, 2k 120hz, 2k 120hz, 2k 120hz, 2k 60hz, 1080P 240hz, 1080P 120hz, 1080P 60hz,
• HDCP version: 2.3 and backward compatible,
• Color depth: 24 bit/30 bit/36 bit,
• Pixel formats: RGB/YCbCr 4:4:4/YCbCr 4:2:2/YCbCr 4:2:0,
• Audio format: support LPCM/DTS/DSD 2.0/2.1/5.1/7.1 channels,
• Audio sampling rate: 24 bit/192 kHz max.
• Video support: 3D, HDR10, HDR10+, VRR,
• Switching modes: button/remote control,

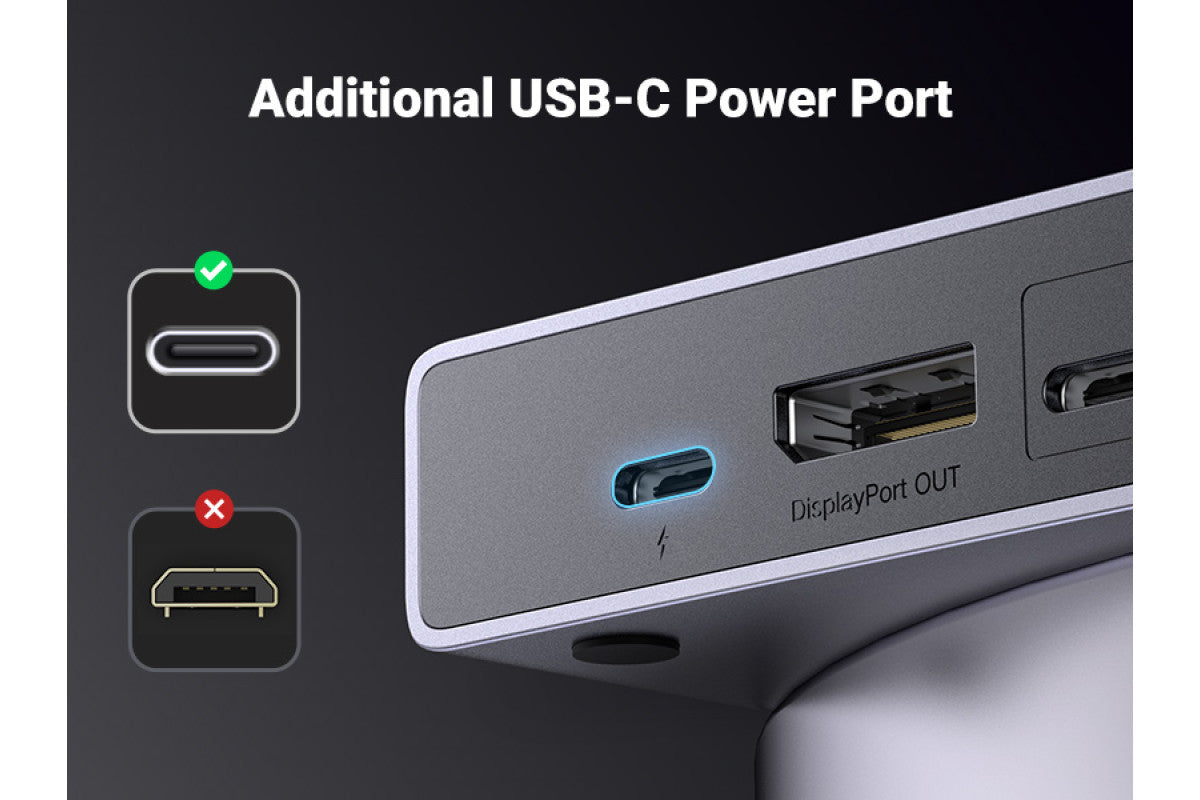

• Auxiliary power: Type-C 5V-3A max,

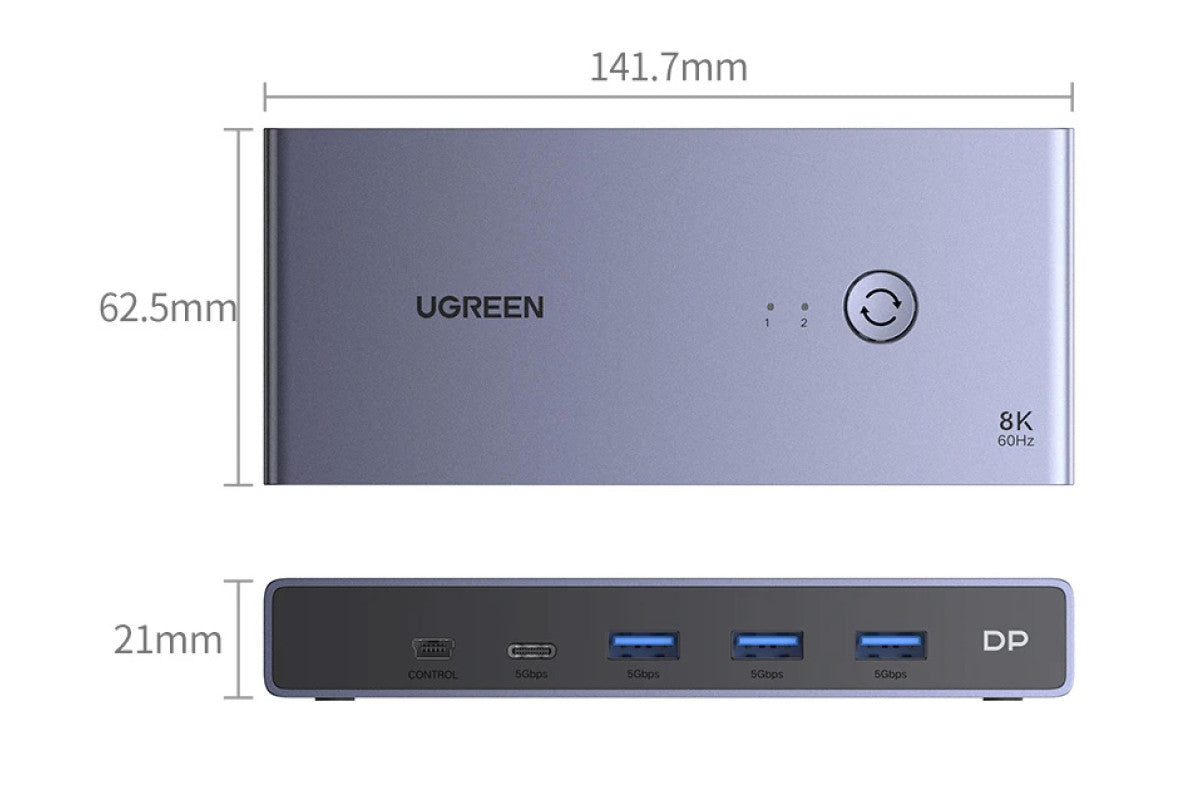

• Dimensions: 142*63*21 mm

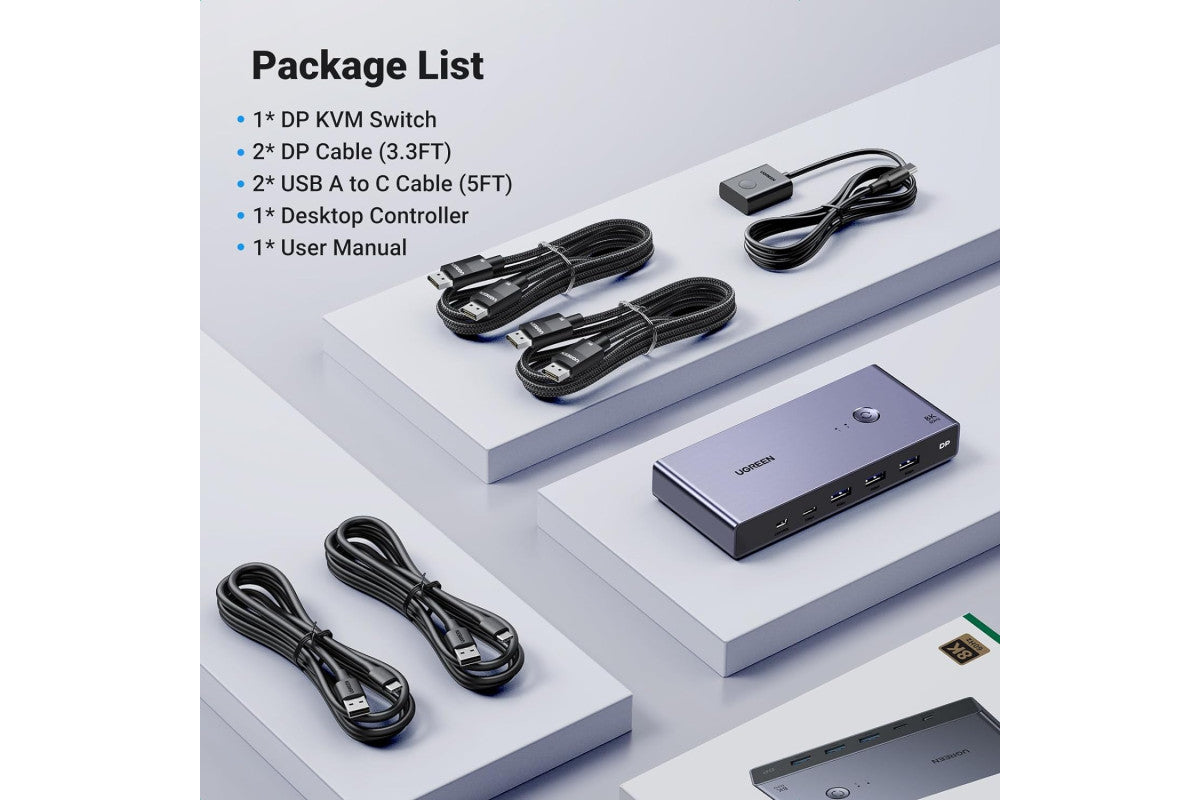

Package Contents:

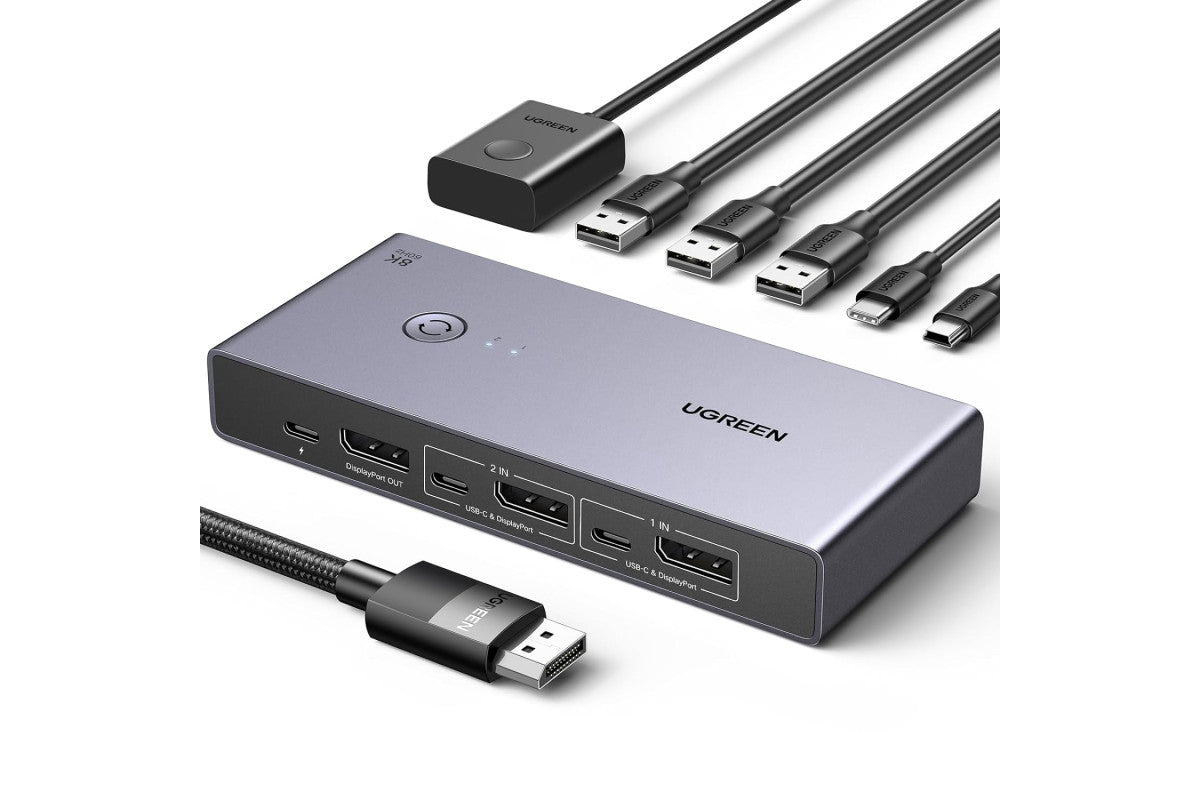

1 * KVM DisplayPort 1.4 Switch 8k
2 * USB-A USB-C Cable 1.5 m
2 * DP DP Cable 1 m
1 * Wired Remote Control 1.5 m
