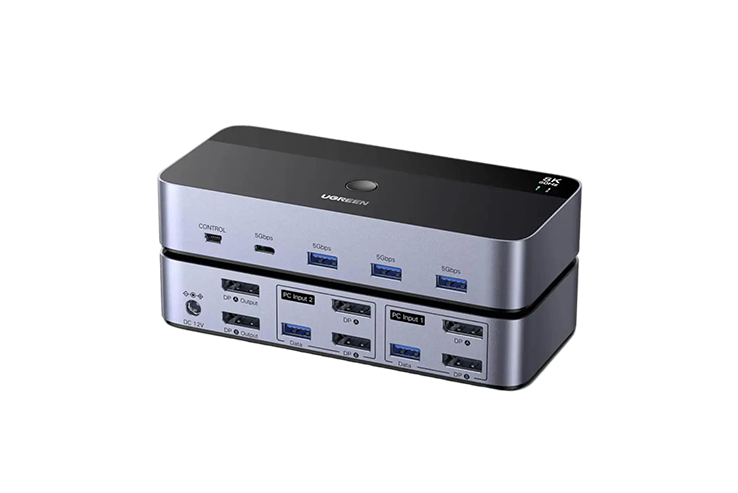

UGREEN DisplayPort Dual Monitor KVM Switch 2 In 2 Out ， UG-55851
- Product SKU: UG-55851

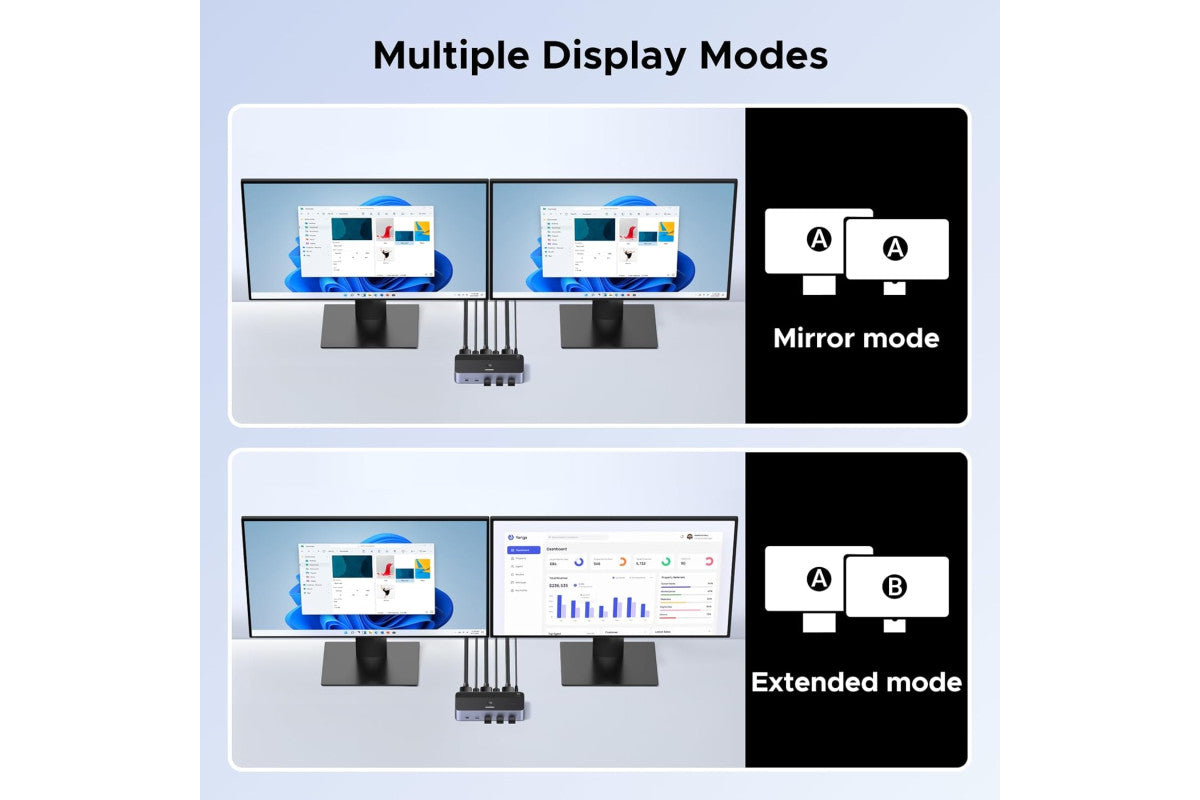

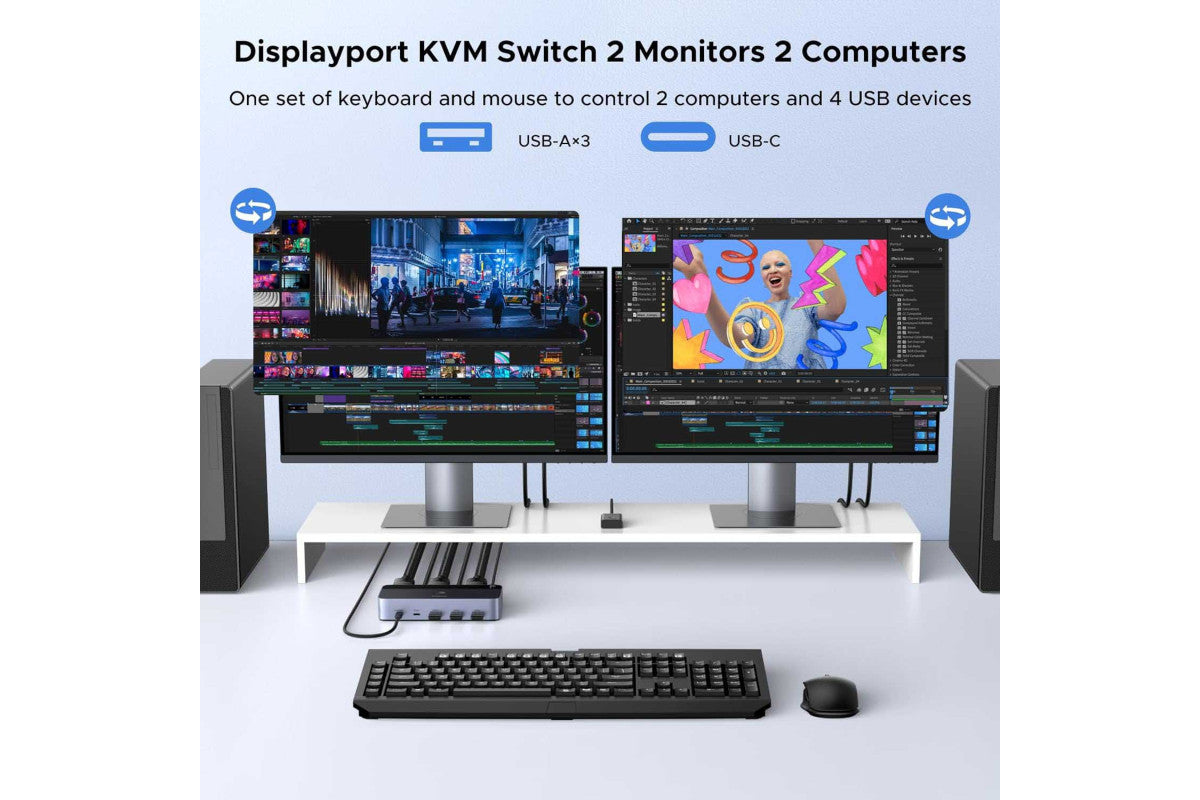

2 Monitor 2 Computer Switch: The switch allows you to easily control and switch between two computers with just one set of keyboard and mouse, controlling two monitors and sharing 4 USB 3.0 devices at the same time. Supports mirror and extended mode. Plug & Play without installing software or drivers. This dual monitor DP switch is ideal for both professional offices and home use.
Ultra HD 8K@60Hz Resolution: The Displayport switch supports resolutions up to 8k 60hz, and is backward compatible with 8K 30Hz, 4K 240Hz/144Hz/120Hz/60Hz/30Hz. Provides clear image quality and lag-free transmission.

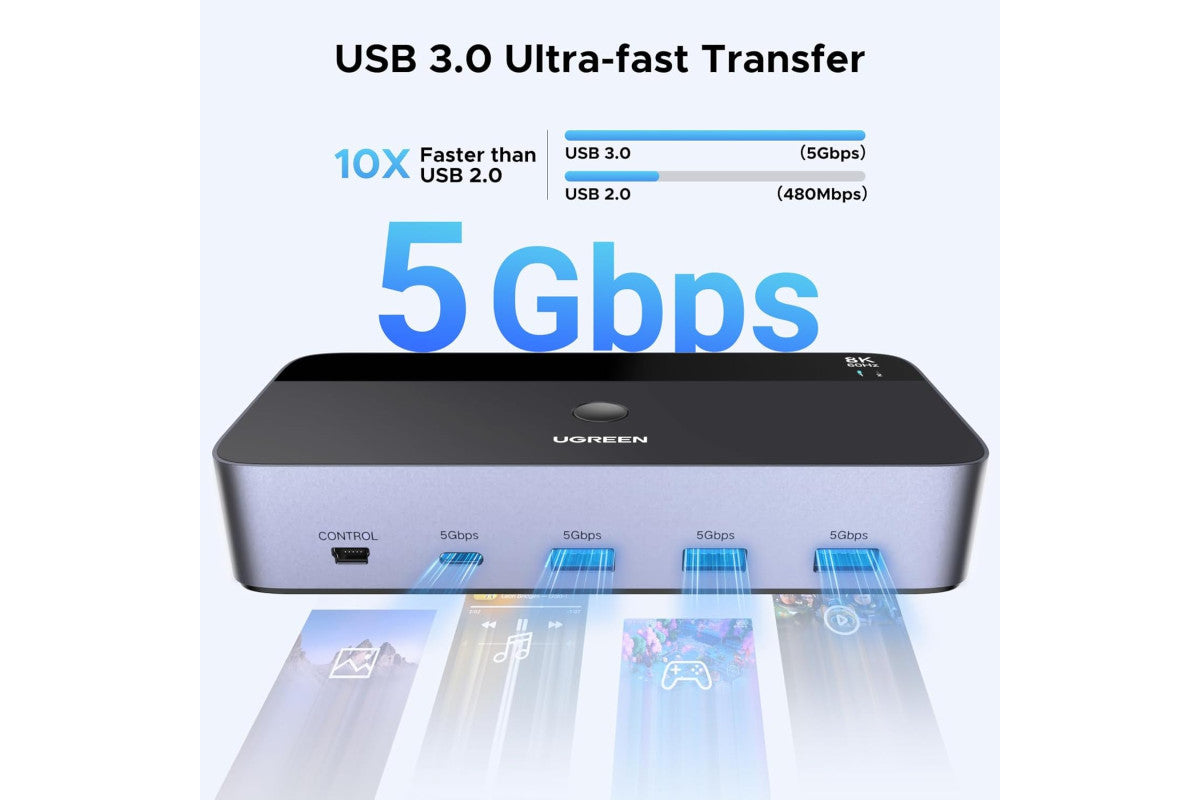

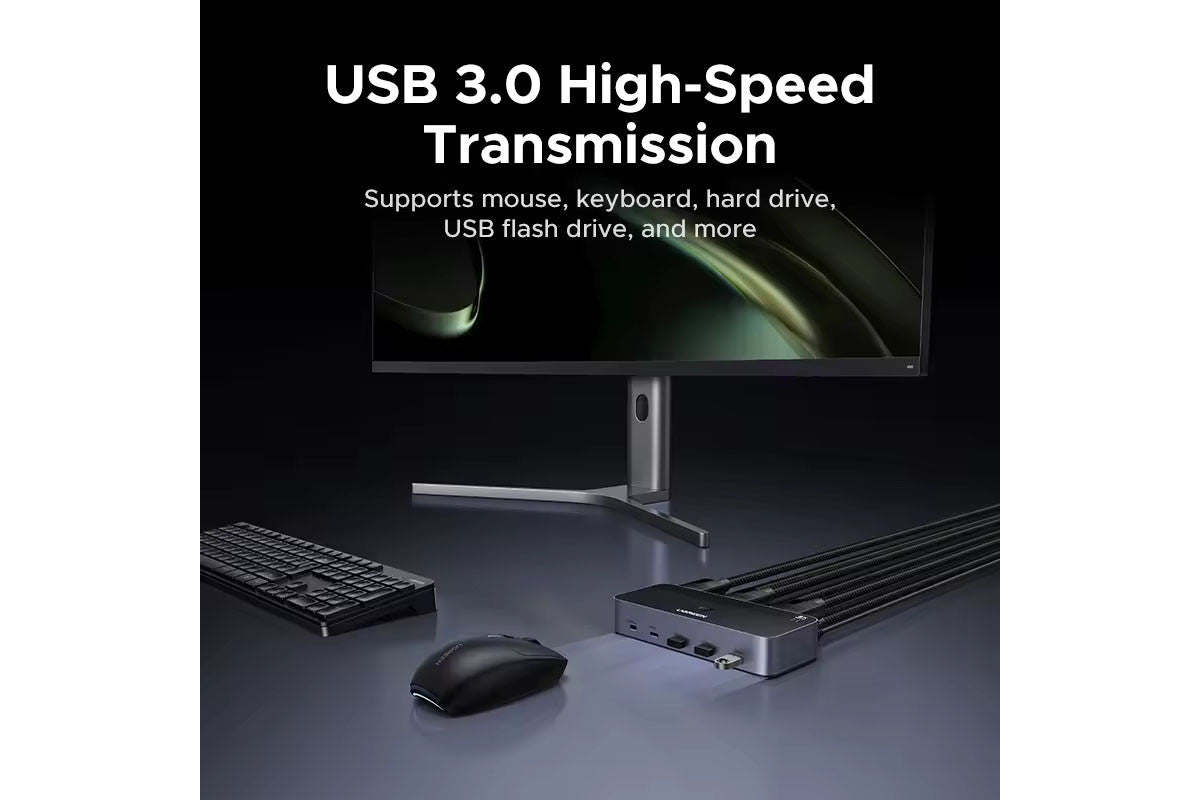

4 USB 3.0 Ports: UGREEN Switch has 4 USB 3.0 ports (3 USB-A+1 USB-C) for sharing mouse, keyboard, USB flash drive, printer, hard drive and other USB devices. USB 3.0 provides data transfer speeds up to 5Gbps, allowing you to speed up data transfer for better work efficiency.

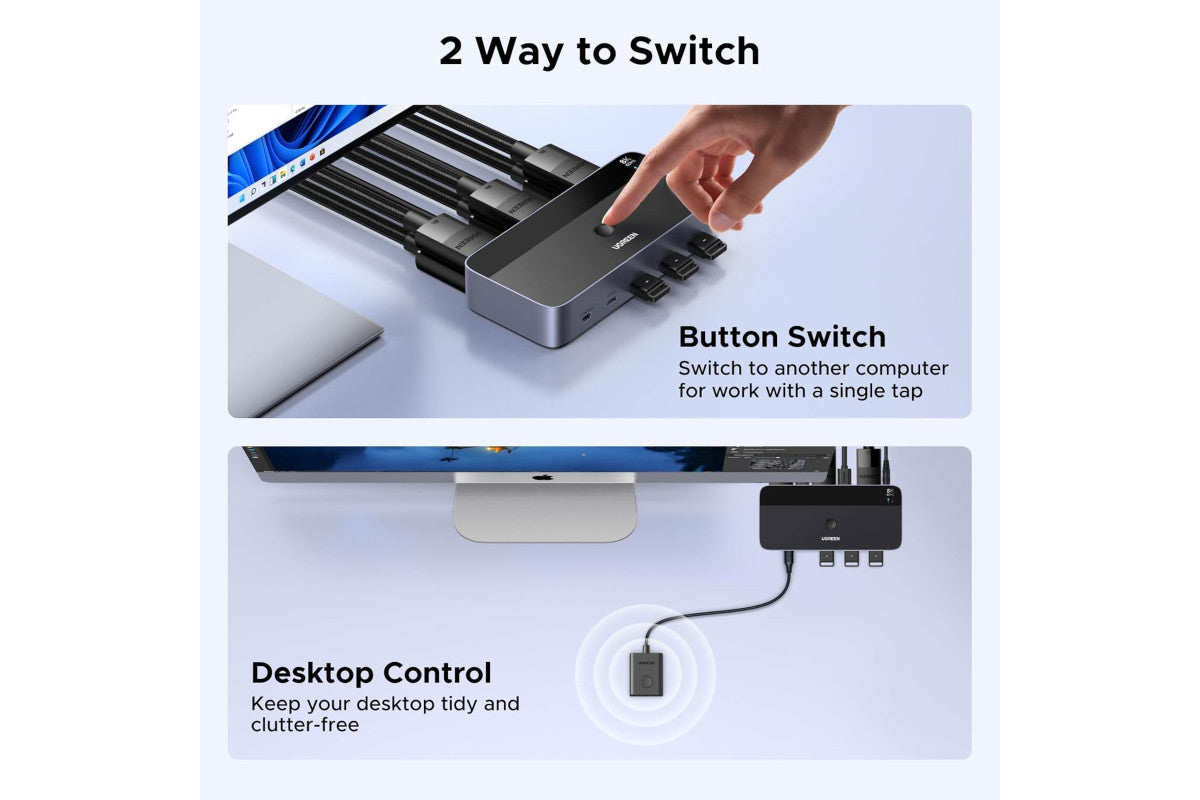

Dual Switching Modes: The dual monitor switcher supports both body button switching and wired remote control switching. With the wired remote control, you can place this DisplayPort switcher outside your work area, making your desktop cleaner and tidier.

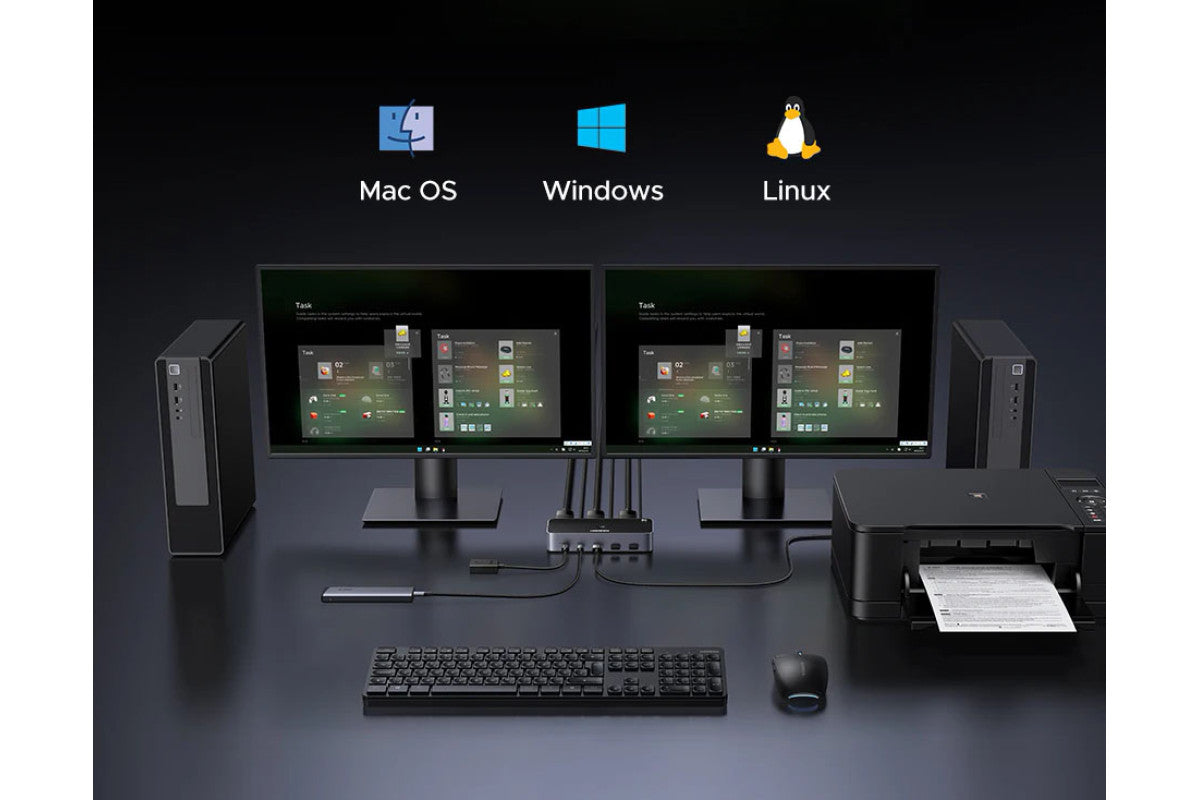

Wide Compatibility: This dual monitor switch supports Windows, MacOS and Linux systems. The DP switch 2 computer 2 monitors supports connection to a wide range of input devices, including computers, laptops, etc.
Specifications:
• Manufacturer: UGREEN

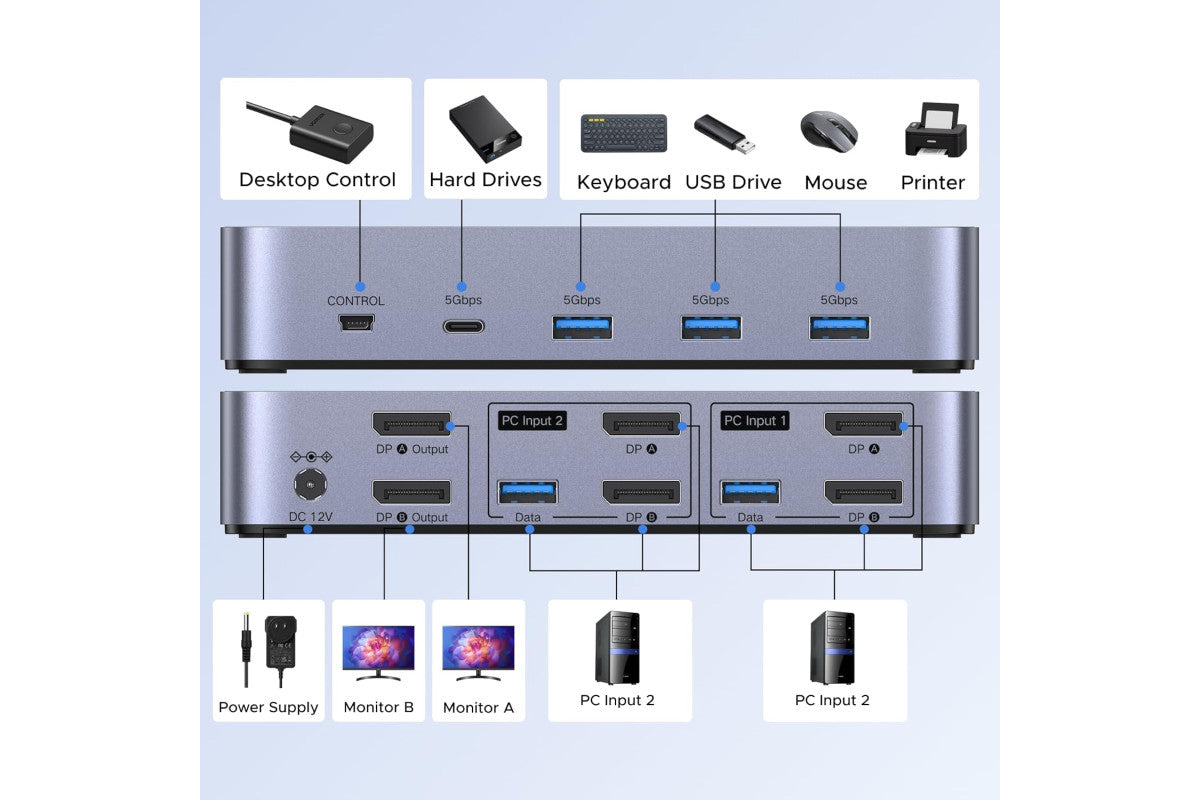

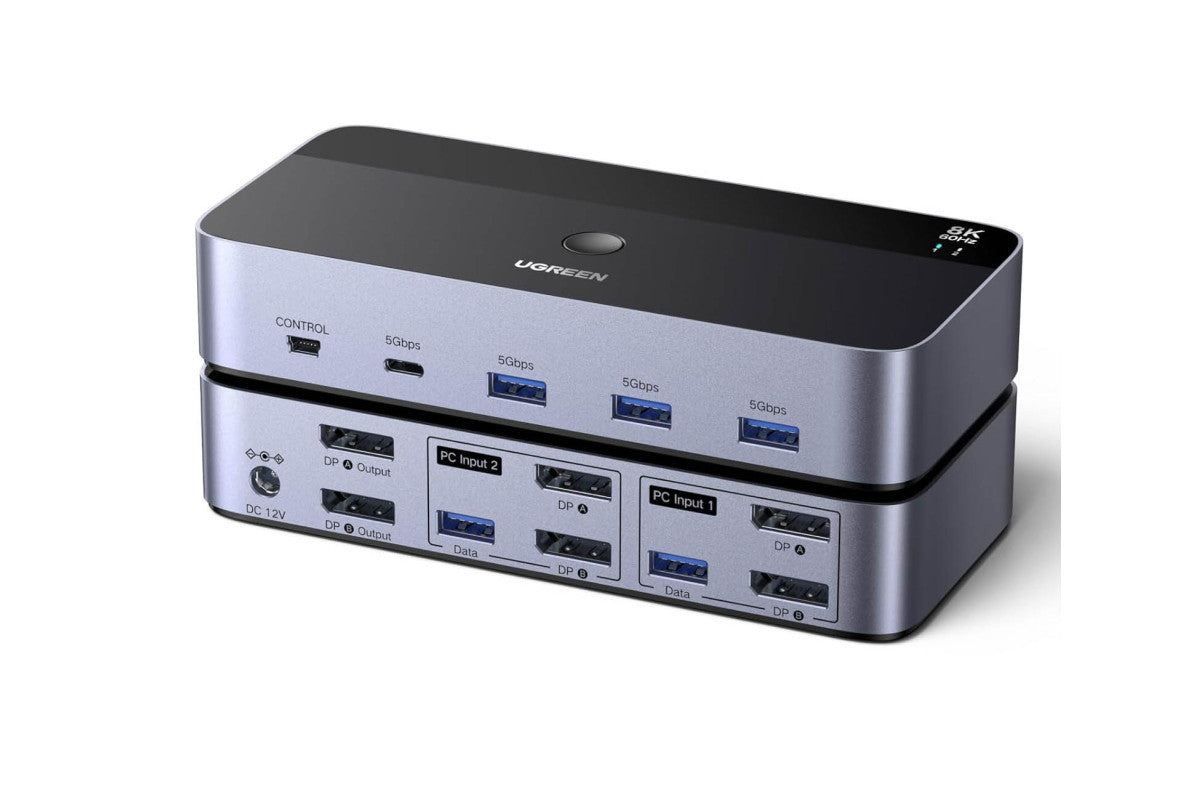

• Input: 4*DisplayPort, 2*USB-A, 1*Mini USB,
• Output: 2*DisplayPort, 3*USB-A, 1*USB-C,
• DisplayPort version: 1.4

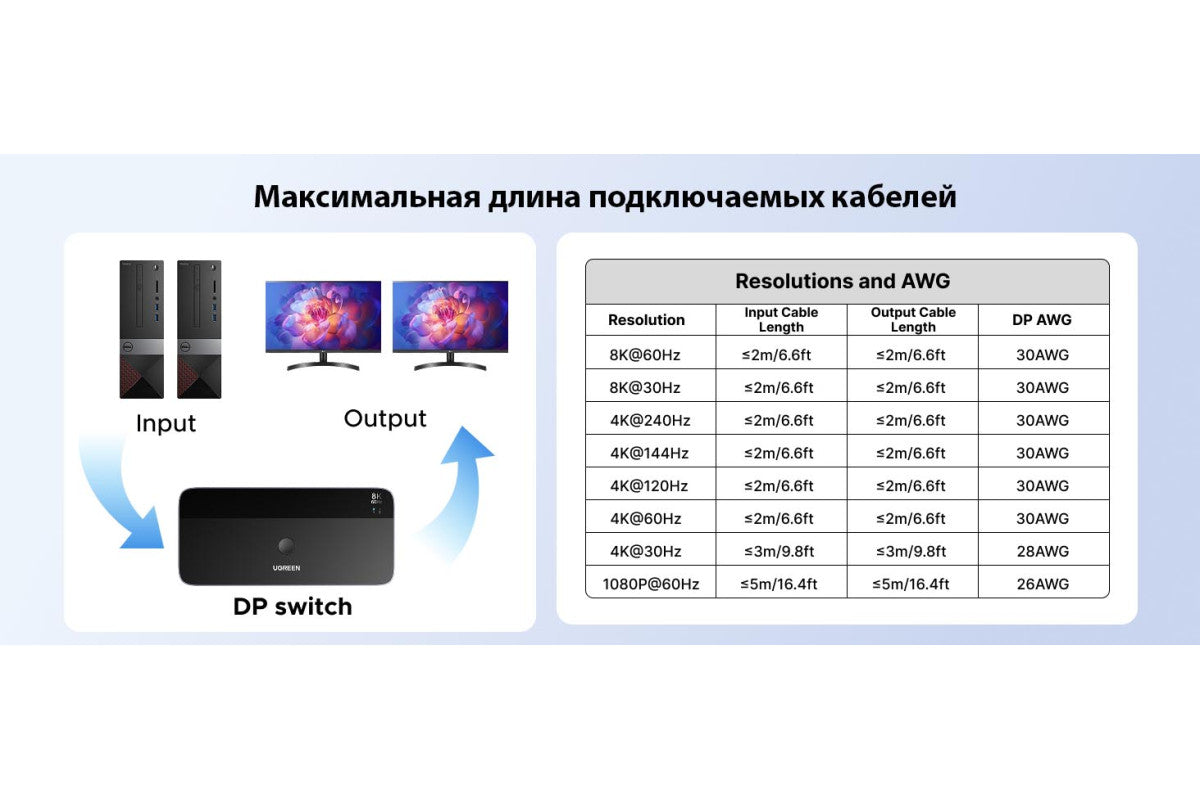

• Resolution: 8k 60hz, 4k 240hz, 4k 144hz, 4k 120hz, 4k 60hz, 2k 240hz, 2k 165hz, 2k 144hz, 2k 60hz, 1080P 240hz, 1080P 144hz, 1080P 60hz,
• HDCP version: 2.3 and backward compatible,
• Color depth: 24 bit/30 bit/36 bit,
• Pixel format: RGB/YCbCr 4:4:4/YCbCr 4:2:2/YCbCr 4:2:0,
• Audio: support LPCM/DTS/DSD 2.0/2.1/5.1/7.1 channels,
• Audio sampling frequency: 24 bit/192 kHz max.
• Video support: 3D, HDR10, HDR10+, VRR,
• Switching modes: button/remote control,
• Additional power: DC 5.5 mm 12V-2A max,
• Dimensions: 157*72*30 mm

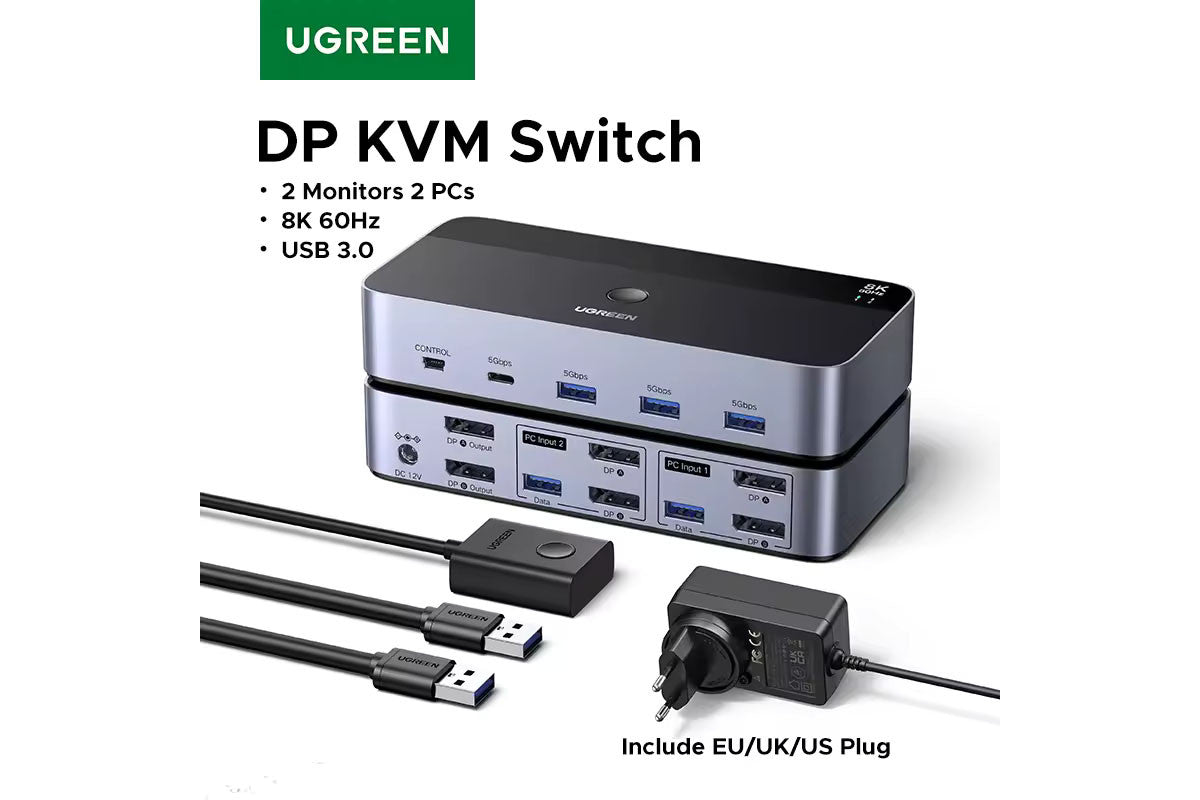

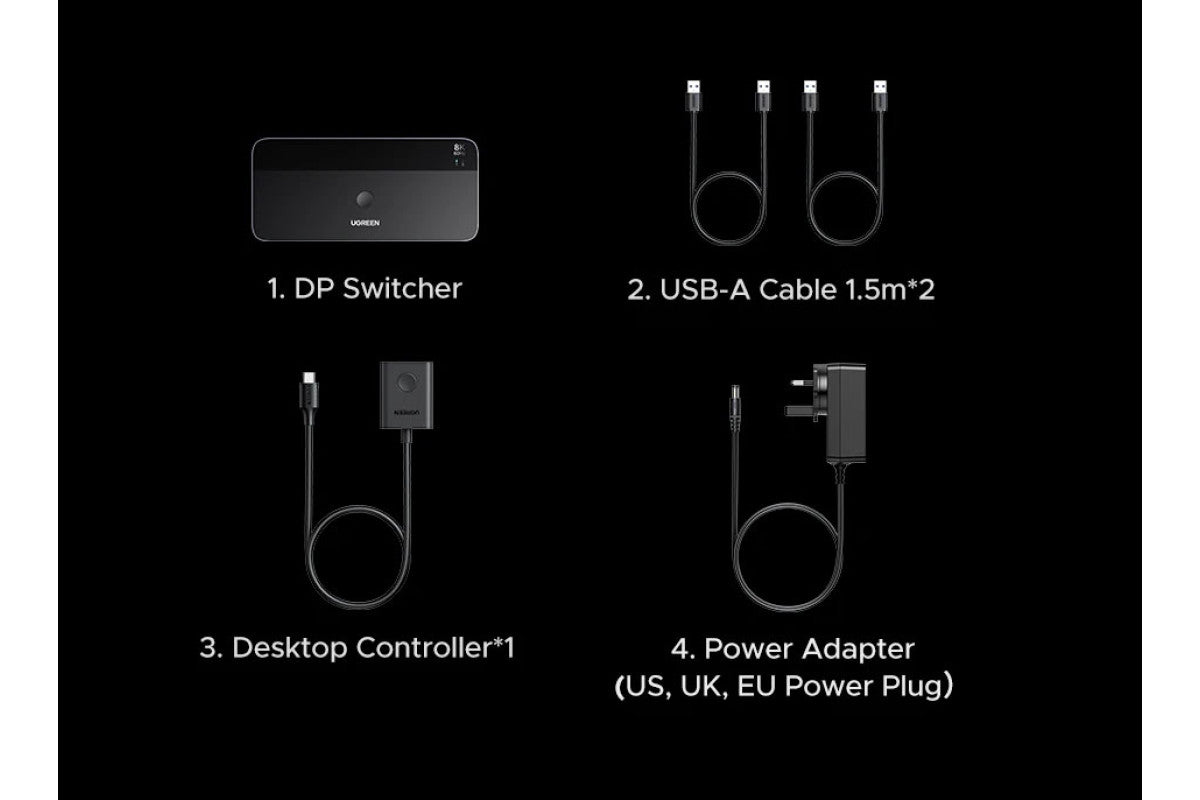

Included:
1 * Ugreen DP Switch,
2 * USB-A Cables 1.5m,
1 * Power Adapter 12V 2A,
1 * Wired Remote Control,
NOTES:
1. Please make sure each of your computers can support dual screen display at the same time.
2. Please make sure your computer has 2 DP ports + 1 USB-A port.
3. Please connect 2 DP cables + 1 USB-A cable to each computer to ensure proper working.
4. The dual monitors can only output the video source of one computer, and can not output the signal sources of PC1 and PC2 at the same time.
5. Please connect it to an external 12V/2A power supply when using this switch.
6. DP cables (6pcs needed) are not included.
7. Hotkey switching is not supported.
